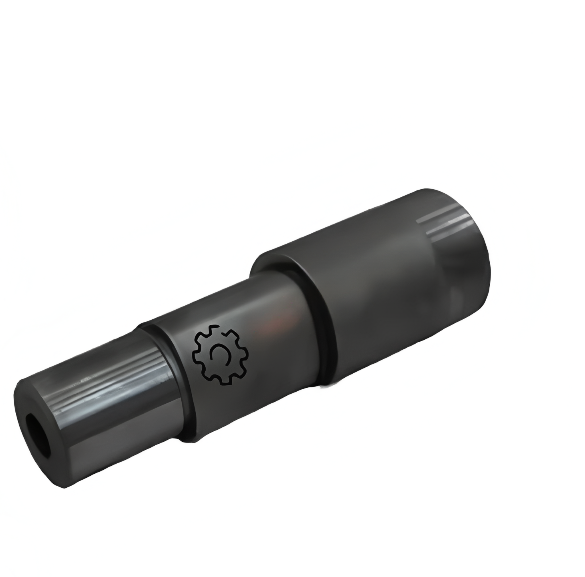

Atlas Copco Rotation Shaft | OEM 3115 3077 00 | Precision Drive Component
OEM Atlas Copco rotation shaft (3115 3077 00). Precision-ground 4140 alloy steel drive component. 1,200 Nm torque capacity for compressors and gearboxes.
This genuine Atlas Copco Rotation Shaft (Part# 3115 3077 00) is a mission-critical transmission component engineered for high-torque industrial equipment. Manufactured to micron-level tolerances, it ensures vibration-free power transfer in demanding applications.
Technical Specifications:
- Material: Case-hardened 4140 alloy steel (HRC 58-62)
- Surface Finish: Ground and polished (Ra ≤ 0.4μm)
- Keyway: DIN 6885-1 standard profile
- Runout Tolerance: ≤ 0.02mm TIR
- Load Capacity: 1,200 Nm continuous torque rating
Primary Applications:
- Atlas Copco screw compressor rotor assemblies
- Industrial gearbox power transmission systems
- Mining drill head rotation mechanisms
- High-speed material handling conveyors
⚠️ Precision Warning:
Non-OEM shafts may cause:
- Premature bearing wear from misalignment
- Resonance-induced fatigue fractures
- Seal leakage due to surface imperfections
Quality Assurance:
- Magnetic particle inspected for subsurface defects
- Batch-traceable material certification
- 100% dimensional verification report included
